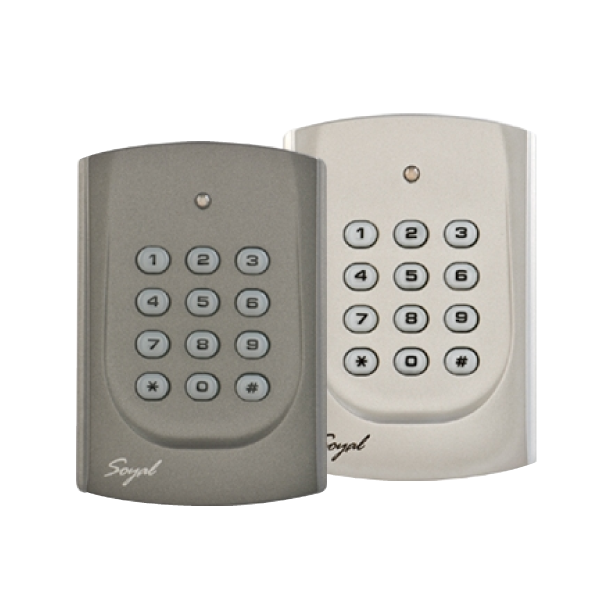

Soyal Door Access

Rating: Not Rated Yet
Price include training and installation


• RS-485 communication interface
• Supporting WG port for anti-pass-back function
• TTL serial output for various application and lift control
• Selectable working frequencies: 125kHz/ 13.56MHz
• 3 control modes: M4/ M6/ M8
• User capacity: 1,024; Event log: 1,200
• 3 access modes: Card only, Card or PIN, Card and PIN
• Built-in Watchdog to prevent system from hanging
• Built-in Real Time Clock & Anti-Tamper functions
• Including the input of door contact, offering the alarm system of both door opening too long and being forced to open
• Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
• 11 sets of Time Zone for various accessing in network
• 2 sets of Auto-Open Zone editable by stand¬alone operation
• Intelligent to shift for stand-alone or networking mode while system disconnected
• Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
• Coordinating with softwares for further application on access control, time attendance, payroll, and door/ sensor image-monitor function
• Flexible to integrate with other equipment
• 1 bi-color LED and 1 beeper for identification
